Meadowlark: Structure Processing Workflow

We ‘clean’ or ‘sanitize’ a starting protein structure by applying the following approach. We begin with coordinate-preserving tasks:

1. Select first model (from among multiple possible models in a PDB file)

2. Select the correct chain

3. Select the first alternate location (if multiple conformers are present for an atom/residue).

4. Remove hetero-atoms (water or buffer molecules, other crystallization reagents, etc.)

which are all achieved via pdb-tools (Q114840802).

Finally, we then performing coordinate-modifying tasks for each domain structure via the following stages:

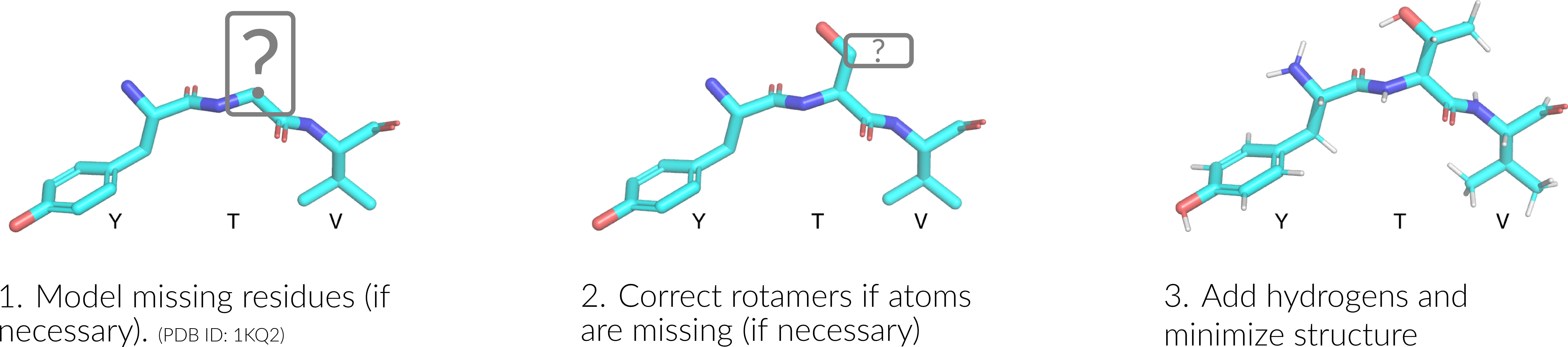

1. Build/model any missing residues with MODELLER (Q3859815)

2. Correct/optimize rotamers with SCWRL4 (Q114840881), e.g. if there are any missing atoms

3. Add hydrogens and perform a rough potential energy minimization with the Pdb2Pqr (Q62856803).
